Lefranc services at competitive prices with the precision and quality you can depend on. However easy it may sound, conversion can be difficult. The ability to accurately capture old, smudged and dense information comes only after years of experience and processes which ensure that the output is accurate.

old plan sets

Interior Design
Space Planning
City Permit Submittals Packages
Sustainable Design
Landscape & Hardscape
As-Builts
Millwork

convert to

DWG (AutoCAD)
DXF (AutoCAD)
DGN (Microstation)
(MapInfo)
GIS, RLC (ArcView)
CCITT Group IV
TIFF Group IV
JPEG
CALS
PCX

benefits

Improved Operational Efficiency
Improved Effectiveness

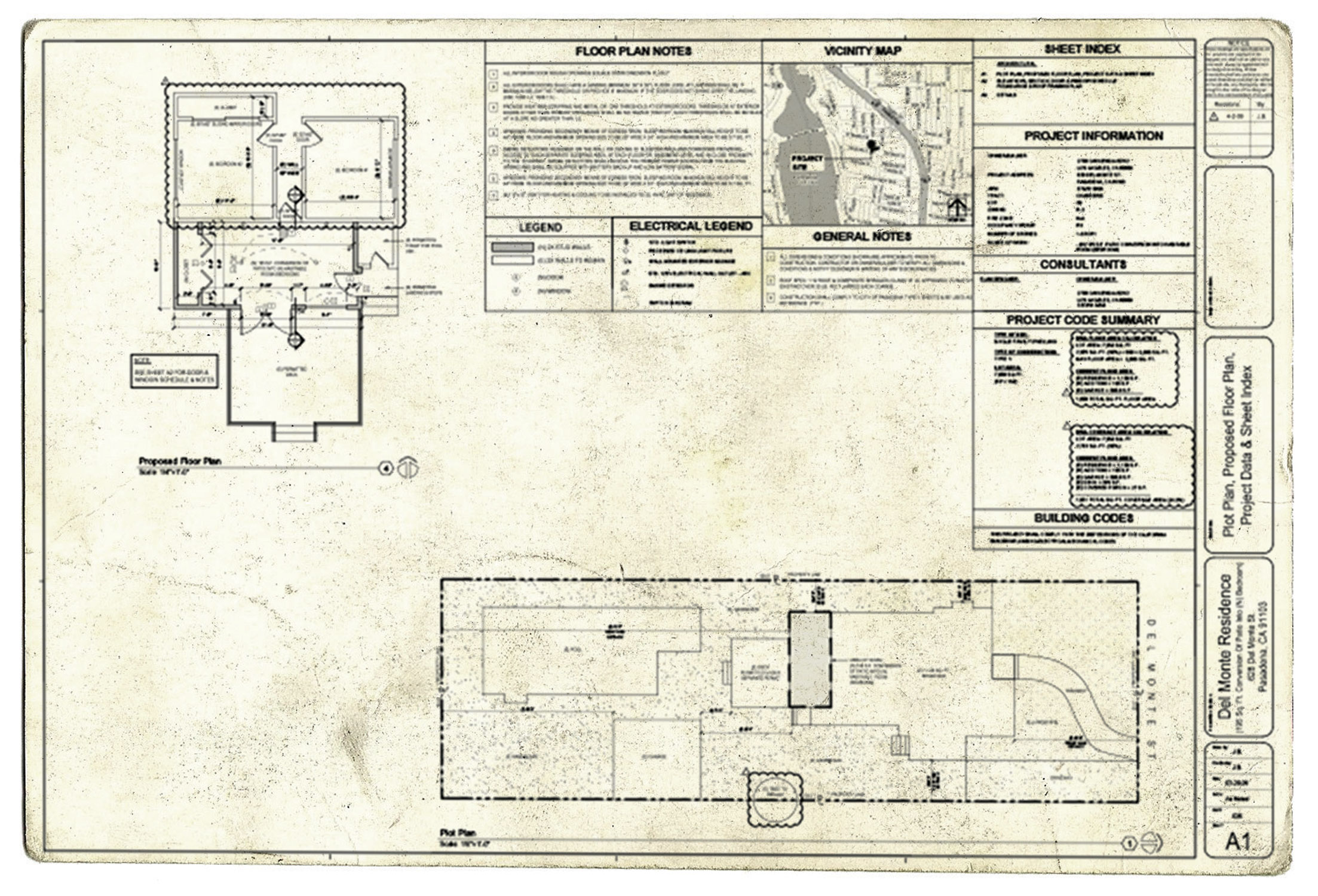

Reproduce superior quality drawings from poor quality originals
Save time vs. digitizing tablets, redrawing, copying and printing documents

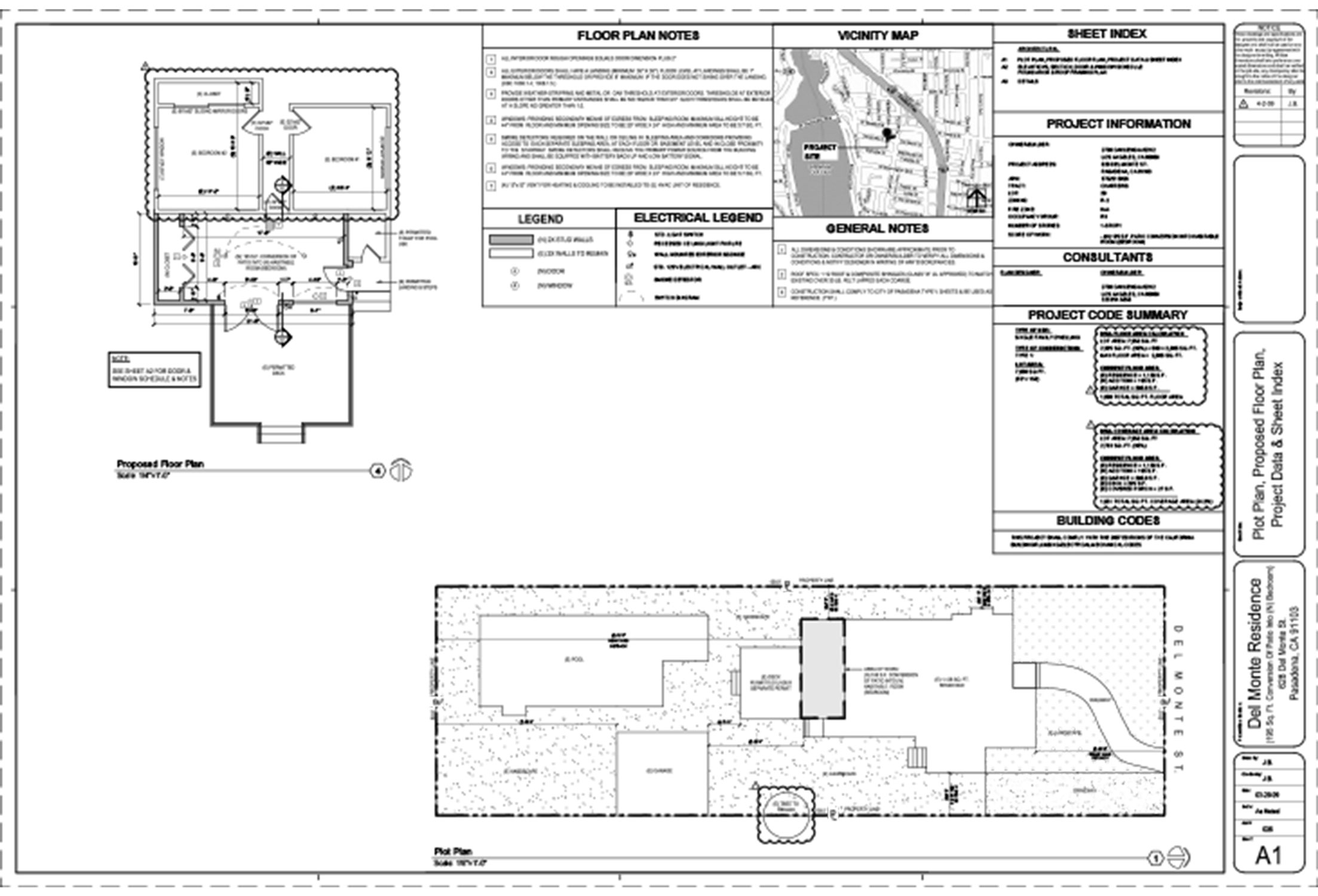

Conversion from raster formats to 100% CAD perfect geometry
Enhanced service to clients at a lower cost
Eliminate misplaced drawings and documentation
Shared access to large files and databases

we always

Maintain the actual dimension of the drawings
Rubber sheet to the raster to make the dimension accurate
Try to keep the layers specified by our clients, otherwise we use our layer systems
Maintain international standards
Maintain snap on/off, grid on/off, dimaso on/off on your drawings
Use standard blocks and attributes on your drawings
Convert your paper drawings maintaining ID points.
Convert your paper maps by poly line/L.F.X. method
Convert your paper maps by poly line arc method, taking only 2nd points and plines
Convert your paper maps by poly line arc method, taking only 2nd points and plines
